A built-in grill can be the focal point of an outdoor kitchen - until heat, clearance, and enclosure details are treated as an afterthought. This built in grill insulation jacket guide explains when a jacket is required, how it protects your island, and what to confirm before your grill is set into a finished countertop.
For a design-forward backyard, the insulation jacket is not an accessory chosen for appearance. It is a purpose-built safety component that allows certain grill heads to be installed within combustible construction, such as wood framing or composite cabinet materials, when the manufacturer permits it. Choosing the correct one protects the investment behind the grill: the cabinetry, finish materials, gas connections, and the people gathered around the island.
What Is a Grill Insulation Jacket?

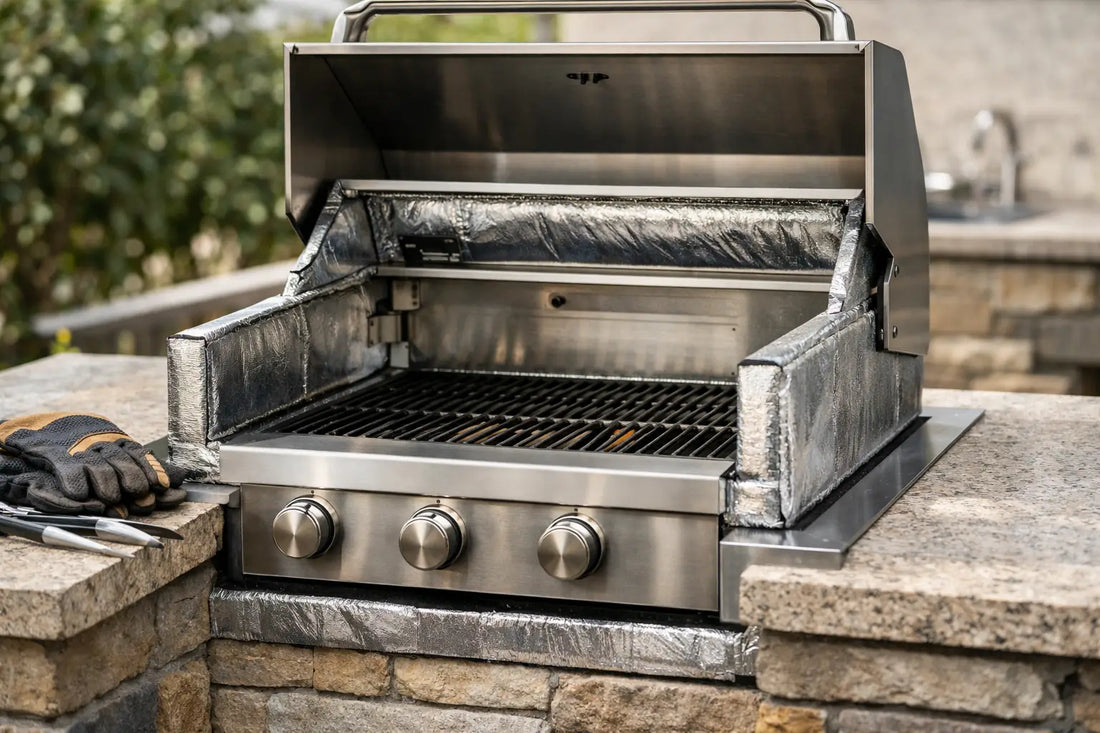

An insulation jacket, sometimes called an insulated liner, is a metal enclosure engineered to fit around a specific built-in grill head. Its job is to create a tested thermal barrier between the hot grill body and the surrounding island structure. The jacket is typically constructed from stainless steel and incorporates an air space that helps manage heat transfer.
It is not a generic box, and it should not be confused with a grill cover. A cover protects the grill from weather when it is cool. An insulation jacket is installed permanently inside the island and addresses heat while the grill is operating.
A quality jacket also establishes the proper cutout dimensions for the grill installation. That matters in a refined outdoor kitchen, where clean reveals, aligned countertop openings, and intentional proportions are part of the finished look. More importantly, the jacket must be matched to the exact grill brand, series, and width. Even grills with similar-looking dimensions may have different clearance requirements and mounting details.
When a Built-In Grill Insulation Jacket Is Required
The answer depends on two things: the grill manufacturer's installation manual and what your island is made of.
If the grill will sit in a combustible enclosure, an approved insulation jacket is commonly required. Combustible materials include wood studs, plywood, standard lumber framing, many composite panels, and certain outdoor-rated cabinetry components. Heat can build up over repeated use, even if the exterior finish is stone, stucco, tile, or another noncombustible material. A stone veneer over a wood-framed island is still a combustible enclosure at its core.
If the grill is installed in a fully noncombustible island, a jacket may not be required. Common noncombustible construction can include concrete block, masonry, steel framing designed for the application, or cementitious assemblies. But this is not a shortcut to assume safety. Countertop materials, adjacent storage, framing behind the finish, and the clearances specified by the grill manufacturer all still matter.
There is also a practical design consideration. Even when a jacket is not technically required, some homeowners choose one to simplify the cutout, provide an added layer of thermal protection, or preserve flexibility if the island construction changes. Whether that is worthwhile depends on the grill model and the project budget. A jacket adds cost and takes up space, so it should be a deliberate specification, not an automatic add-on.
Why Matching the Jacket to the Grill Matters
Premium built-in grills are engineered as systems. The grill, insulation jacket, trim, ventilation guidance, and clearance instructions work together. Selecting a jacket by nominal width alone can create a poor fit or, more seriously, an installation that falls outside the manufacturer's tested specifications.
Confirm the exact product designation before ordering. A 36-inch grill, for example, may require a different jacket depending on its series, control layout, rear hood clearance, and mounting flange. Do not rely on a cabinet opening from a previous grill or a contractor's estimate from a different brand.
Review these details with the grill's current installation documentation:
- The grill's exact model number and fuel type
- The approved insulation jacket model for that grill
- Finished cutout width, depth, and height
- Required clearances above, behind, and beside the grill
- Countertop thickness and support requirements
- Ventilation requirements for the island, especially for gas models
Start With the Island Construction, Not the Finish
Outdoor kitchens often look deceptively simple from the front. The visible face may be limestone, porcelain, architectural concrete, or powder-coated cabinetry, while the structure beneath tells the real safety story.
Before choosing an insulation jacket, identify the full assembly. Ask what the framing is made from, how the countertop is supported, where appliance cavities are located, and whether combustible materials sit behind a decorative finish. This conversation is especially valuable when working with a landscape designer, builder, or cabinet fabricator early in the process.
A beautiful natural-stone counter can retain heat, and a deep grill hood can require more rear clearance than the island appears to allow. A jacket does not grant permission to compress every dimension for a tighter visual fit. Respecting the manufacturer's space requirements helps preserve airflow, protects adjacent surfaces, and gives the grill the room it needs to perform as intended.
If you are renovating an existing island, measure the actual cavity rather than the visible opening. Many retrofit projects reveal unexpected blocking, gas lines, electrical runs, or structural supports once the old grill is removed. Ordering the new grill and jacket before verifying these details can lead to costly field modifications.
Plan Ventilation and Service Access Early
A polished outdoor kitchen should feel effortless to use, but that ease is built into the details no one sees. Gas grills require appropriate island ventilation because propane or natural gas can accumulate differently within an enclosed cavity. The location, size, and number of vents should follow the grill manufacturer's instructions and applicable local requirements.
Service access deserves the same attention. Plan a reachable gas shutoff valve, room to inspect connections, and a path for future maintenance. If your design includes under-grill storage, drawers, a refrigerator, or a trash pullout, confirm that each appliance has its own required clearances and ventilation. Avoid treating the entire island as one open, interchangeable cavity.
For natural gas installations, a qualified professional should handle the connection, pressure considerations, and leak testing. Propane installations may involve a dedicated tank compartment with its own venting rules. Electrical ignition, rotisserie outlets, lighting, and nearby GFCI-protected receptacles should be coordinated before stonework and countertops are completed.
Common Mistakes That Compromise a Premium Build
The most frequent mistake is assuming an exterior finish determines whether an island is combustible. Decorative stone over wood framing still requires the same careful evaluation. Another is purchasing a jacket that is close in size but not approved for the particular grill model.
Homeowners also occasionally assume the jacket replaces all clearance requirements. It does not. Hood clearance, countertop specifications, vent placement, and proximity to pergola members, walls, or overhead finishes remain separate considerations. A grill's lid needs room to open comfortably, but more importantly, hot exhaust and radiant heat need the clearances specified by the manufacturer.
Finally, do not bury critical information under a finished counter. Keep manuals, model numbers, gas-line documentation, and warranty details with your home records. These materials are useful for seasonal service, future renovations, and a confident handoff if the property changes hands.
How to Specify the Right Jacket With Confidence
Begin by selecting the grill you genuinely want to cook on. Consider burner layout, cooking surface, rotisserie capability, fuel source, and the overall scale of the kitchen. Once the grill is chosen, identify the manufacturer's corresponding insulation jacket and build the cabinet opening around its published specifications.
At Prime Living Outdoors, this is the kind of decision where product-specific guidance can prevent an elegant plan from becoming an expensive correction. Share the grill model, island material, countertop plan, and whether the project is new construction or a retrofit. A clear specification review makes it easier to coordinate with your builder before fabrication begins.
The right insulation jacket stays largely out of sight, yet it supports everything a luxury outdoor kitchen should deliver: lasting materials, thoughtful performance, and a setting that feels ready for every gathering. Give this component the same consideration as the grill itself, and your finished island will have the confidence and composure of a space designed to be enjoyed for years.
